最近寫課設，因為是新手，實現起來比較麻煩。所以寫下此筆記，免得我以后忘記了。

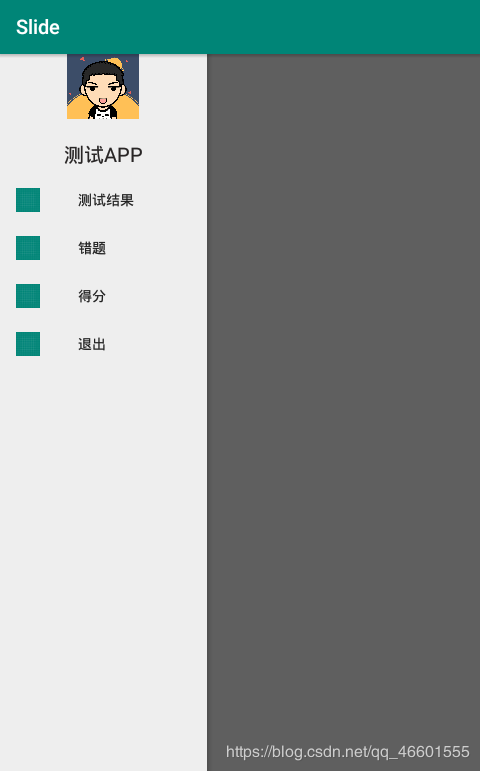

附圖片：

//主頁面的布局activity_main.xml:

<?xml version='1.0' encoding='utf-8'?><android.support.v4.widget.DrawerLayout xmlns:android='http://schemas.android.com/apk/res/android' xmlns:tools='http://schemas.android.com/tools' xmlns:qpp='http://schemas.android.com/apk/res-auto' android: android:layout_width='match_parent' android:layout_height='match_parent' android:fitsSystemWindows='true' tools:openDrawer='start'> <TextView android:layout_width='wrap_content' android:layout_height='wrap_content' android:text='Hello World!' /> <android.support.design.widget.NavigationView android: android:layout_width='207dp' android:layout_height='match_parent' android:layout_gravity='left' android:fitsSystemWindows='true' qpp:headerLayout='@layout/stumenu1' qpp:menu='@menu/stumenu1' /></android.support.v4.widget.DrawerLayout>

頭部的布局（放入layout）stumenu1.xml:

<?xml version='1.0' encoding='utf-8'?><!--學生左滑后界面--><android.support.constraint.ConstraintLayout xmlns:android='http://schemas.android.com/apk/res/android' xmlns:tools='http://schemas.android.com/tools' android:layout_width='match_parent' android:layout_height='match_parent'> <LinearLayout xmlns:android='http://schemas.android.com/apk/res/android' android:orientation='vertical' android:layout_width='match_parent' android:layout_height='match_parent' android:gravity='center' > <ImageView android: android:layout_width='72dp' android:layout_height='72dp' android:layout_marginTop='75dp' android:src='http://m.lshqa.cn/bcjs/@drawable/student' /> <TextView android: android:layout_width='wrap_content' android:layout_height='wrap_content' android:textSize='20sp' android:layout_marginTop='20dp' android:textColor='#282525' android:text='測試APP'/> </LinearLayout></android.support.constraint.ConstraintLayout>

菜單的布局：(放在menu文件夾）stumenu1

<?xml version='1.0' encoding='utf-8'?><menu xmlns:android='http://schemas.android.com/apk/res/android' xmlns:app='http://schemas.android.com/apk/res-auto'> <group android:checkableBehavior='single'> <item android: android:icon='@drawable/ic_launcher_background' android:checkable='true' android:title=' 測試結果'/> <item android: android:icon='@drawable/ic_launcher_background' android:title=' 錯題'/> <item android: android:icon='@drawable/ic_launcher_background' android:title=' 得分'/> <item android: android:icon='@drawable/ic_launcher_background' android:title=' 退出'/> </group></menu>

MainActivity.java:

package com.example.cholewu.slide;import android.content.Intent;import android.support.annotation.NonNull;import android.support.design.widget.NavigationView;import android.support.v4.widget.DrawerLayout;import android.support.v7.app.AppCompatActivity;import android.os.Bundle;import android.view.MenuItem;import android.widget.Toast;public class MainActivity extends AppCompatActivity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); //左滑菜單 initView(); } private void initView() { //實現左右滑動 final DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout); //菜單控件 final NavigationView nv = findViewById(R.id.nav_view); nv.setItemIconTintList(null);nv.setNavigationItemSelectedListener(new NavigationView.OnNavigationItemSelectedListener() { @Override public boolean onNavigationItemSelected(@NonNull MenuItem item) {switch (item.getItemId()){ case R.id.exit: //跳轉到退出頁面 Toast.makeText(MainActivity.this,'你已退出登錄！',Toast.LENGTH_SHORT).show(); Intent intent=new Intent(); intent.setClass(MainActivity.this,Exit.class); startActivity(intent); item.setChecked(true); break;}item.setCheckable(true);//設置可選項item.setChecked(true);//設置被選中drawer.closeDrawers();//關閉菜單欄return true; } }); }}

(注意：如果直接復制代碼的話，android.support.design.widget.NavigationView可能會出錯，需要自己在design那里布局，如果出錯，可以看看以下NavigationView右邊是否有下載圖案，點擊下載就行了）

總結

到此這篇關于Android studio有關側滑的實現的文章就介紹到這了,更多相關Android studio有關側滑的實現內容請搜索好吧啦網以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持好吧啦網！
