Django Channel實時推送與聊天的示例代碼

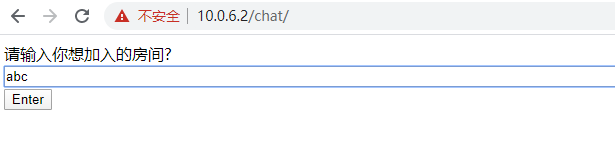

先來看一下最終的效果吧

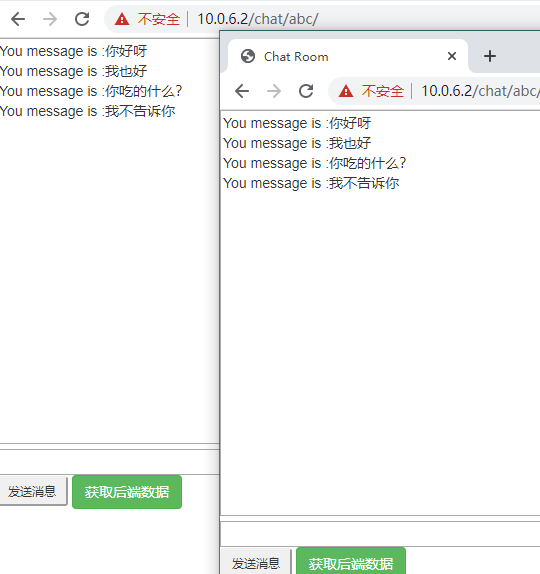

開始聊天，輸入消息并點擊發送消息就可以開始聊天了

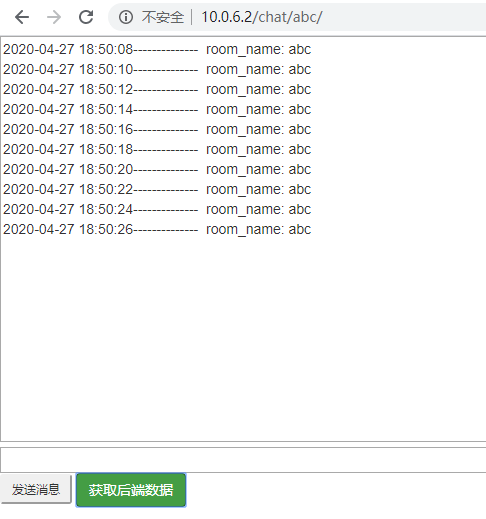

點擊 “獲取后端數據”開啟實時推送
先來簡單了解一下 Django Channel
Channels是一個采用Django并將其功能擴展到HTTP以外的項目，以處理WebSocket，聊天協議，IoT協議等。它基于稱為ASGI的Python規范構建。
它以Django的核心為基礎，并在其下面分層了一個完全異步的層，以同步模式運行Django本身，但異步處理了連接和套接字，并提供了以兩種方式編寫的選擇，從而實現了這一點。
詳情請參考官方文檔：https://channels.readthedocs.io/en/latest/introduction.html
再簡單說下ASGI是什么東東吧
ASGI 由 Django 團隊提出，為了解決在一個網絡框架里（如 Django）同時處理 HTTP、HTTP2、WebSocket 協議。為此，Django 團隊開發了 Django Channels 插件，為 Django 帶來了 ASGI 能力。在 ASGI 中，將一個網絡請求劃分成三個處理層面，最前面的一層，interface server（協議處理服務器），負責對請求協議進行解析，并將不同的協議分發到不同的 Channel（頻道）；頻道屬于第二層，通常可以是一個隊列系統。頻道綁定了第三層的 Consumer（消費者）。
詳情請參考官方文檔：https://channels.readthedocs.io/en/latest/asgi.html
下邊來說一下具體的實現步驟
一、安裝channel
pip3 install channels pip3 install channels_redis
二、新建Django項目
1.新建項目
django-admin startproject mysite
2.新建應用
python3 manage.py startapp chat
3.編輯mysite/settings.py文件
#注冊應用INSTALLED_APPS = [ .... ’chat.apps.ChatConfig’, 'channels',]# 在文件尾部新增如下配置#將ASGI_APPLICATION設置設置為指向該路由對象作為您的根應用程序：ASGI_APPLICATION = ’mysite.routing.application’#配置RedisCHANNEL_LAYERS = { ’default’: { ’BACKEND’: ’channels_redis.core.RedisChannelLayer’, ’CONFIG’: { 'hosts': [(’10.0.6.29’, 6379)], }, },}
三、詳細代碼與配置
1. 添加索引視圖的模板
在chat目錄中創建一個templates目錄。在您剛剛創建的templates目錄中，創建另一個名為的目錄chat，并在其中創建一個名為的文件index.html以保存索引視圖的模板
將以下代碼放入chat/templates/chat/index.html
<!-- chat/templates/chat/index.html --><!DOCTYPE html><html><head> <meta charset='utf-8'/> <title>Chat Rooms</title></head><body> What chat room would you like to enter?<br> <input type='text' size='100'><br> <input type='button' value='Enter'> <script> document.querySelector(’#room-name-input’).focus(); document.querySelector(’#room-name-input’).onkeyup = function(e) { if (e.keyCode === 13) { // enter, returndocument.querySelector(’#room-name-submit’).click(); } }; document.querySelector(’#room-name-submit’).onclick = function(e) { var roomName = document.querySelector(’#room-name-input’).value; window.location.pathname = ’/chat/’ + roomName + ’/’; }; </script></body></html>
2.創建聊天與消息推送模板
chat/templates/chat/room.html
<!DOCTYPE html><html><head> <script src='https://cdn.bootcdn.net/ajax/libs/jquery/3.5.0/jquery.min.js' type='text/javascript'></script> <link rel='stylesheet' rel='external nofollow' > <script src='https://cdn.jsdelivr.net/npm/[email protected]/dist/js/bootstrap.min.js'></script> <meta charset='utf-8'/> <title>Chat Room</title></head><body><textarea cols='150' rows='30' class='text'></textarea><br><input type='text' size='150'><br><input type='button' value='發送消息' class='input-sm'><button class='btn btn-success'>獲取后端數據</button>{{ room_name|json_script:'room-name' }}<script> $('#get_data').click(function () { $.ajax({ url: '{% url ’push’ %}', type: 'GET', data: {'room': '{{ room_name }}','csrfmiddlewaretoken': '{{ csrf_token }}' }, }) }); const roomName = JSON.parse(document.getElementById(’room-name’).textContent); const chatSocket = new WebSocket( ’ws://’ + window.location.host + ’/ws/chat/’ + roomName + ’/’ ); let chatSocketa = new WebSocket( 'ws://' + window.location.host + '/ws/push/' + roomName ); chatSocket.onmessage = function (e) { const data = JSON.parse(e.data); // data 為收到后端發來的數據 //console.log(data); document.querySelector(’#chat-log’).value += (data.message + ’n’); }; chatSocketa.onmessage = function (e) { let data = JSON.parse(e.data); //let message = data['message']; document.querySelector('#chat-log').value += (data.message + 'n'); }; chatSocket.onclose = function (e) { console.error(’Chat socket closed unexpectedly’); }; chatSocketa.onclose = function (e) { console.error('Chat socket closed unexpectedly'); }; document.querySelector(’#chat-message-input’).focus(); document.querySelector(’#chat-message-input’).onkeyup = function (e) { if (e.keyCode === 13) { // enter, return document.querySelector(’#chat-message-submit’).click(); } }; document.querySelector(’#chat-message-submit’).onclick = function (e) { const messageInputDom = document.querySelector(’#chat-message-input’); const message = messageInputDom.value; chatSocket.send(JSON.stringify({ ’message’: message })); messageInputDom.value = ’’; };</script></body></html>
3.創建房間的視圖
將以下代碼放入chat/views.py
# chat/views.pyfrom django.shortcuts import renderfrom django.http import JsonResponsefrom channels.layers import get_channel_layerfrom asgiref.sync import async_to_syncdef index(request): return render(request, 'chat/index.html')def room(request, room_name): return render(request, 'chat/room.html', {'room_name': room_name})def pushRedis(request): room = request.GET.get('room') print(room) def push(msg): channel_layer = get_channel_layer() async_to_sync(channel_layer.group_send)( room, {'type': 'push.message', 'message': msg, 'room_name': room} ) push('推送測試', ) return JsonResponse({'1': 1})
4. 創建項目二級路由
在chat目錄下創建一個名為的文件urls.py
# mysite/chat/urls.pyfrom django.urls import pathfrom . import viewsurlpatterns = [ path(’’, views.index, name=’index’), path(’<str:room_name>/’, views.room, name=’room’),]
5. 修改根路由
# mysite/urls.pyfrom django.contrib import adminfrom django.urls import path, includefrom chat.views import pushRedisurlpatterns = [ path(’admin/’, admin.site.urls), path('chat/', include('chat.urls')), path('push', pushRedis, name='push'),]
6.創建一個消費者
文件chat/consumers.py
當Django接受HTTP請求時，它會查詢根URLconf來查找視圖函數，然后調用該視圖函數來處理該請求。同樣，當Channels接受WebSocket連接時，它會查詢根路由配置以查找使用者，然后在使用者上調用各種功能來處理來自連接的事件。
import timeimport jsonfrom channels.generic.websocket import WebsocketConsumer, AsyncWebsocketConsumerfrom asgiref.sync import async_to_syncimport redispool = redis.ConnectionPool( host='10.0.6.29', port=6379, max_connections=10, decode_response=True,)conn = redis.Redis(connection_pool=pool, decode_responses=True)class ChatConsumer(AsyncWebsocketConsumer): async def connect(self, ): self.room_name = self.scope['url_route']['kwargs']['room_name'] self.room_group_name = 'chat_%s' % self.room_name await self.channel_layer.group_add( self.room_group_name, self.channel_name, ) await self.accept() async def disconnect(self, close_code): print('close_code: ', close_code) await self.channel_layer.group_discard( self.room_group_name, self.channel_name ) async def receive(self, text_data=None, bytes_data=None): text_data_json = json.loads(text_data) message = text_data_json['message'] print('receive_message：', message) await self.channel_layer.group_send( self.room_group_name, {'type': 'chat_message','message': message } ) async def chat_message(self, event): receive_message = event['message'] response_message = 'You message is :' + receive_message await self.send(text_data=json.dumps({ 'message': response_message }))class PushMessage(WebsocketConsumer): def connect(self): self.room_group_name = self.scope['url_route']['kwargs']['room_name'] async_to_sync(self.channel_layer.group_add)( self.room_group_name, self.channel_name ) self.accept() def disconnect(self, code): async_to_sync(self.channel_layer.group_discard)( self.room_group_name, self.channel_name ) def push_message(self, event): ''' 主動推送 :param event: :return: ''' print(event, type(event)) while True: time.sleep(2) msg = time.strftime('%Y-%m-%d %H:%M:%S') + '--- room_name: %s' % event['room_name'] self.send(text_data=json.dumps({'message': msg} ))
7.為項目添加websocket的路由配置
在chat目錄下創建一個名為的文件routing.py
# mysite/chat/routing.pyfrom django.urls import re_path, pathfrom . import consumerswebsocket_urlpatterns = [ re_path(r'ws/chat/(?P<room_name>w+)/$', consumers.ChatConsumer), path('ws/push/<room_name>', consumers.PushMessage),]
8.配置websocket根路由
與setting同級目錄新建ws根路由文件 routing.py
from channels.routing import ProtocolTypeRouter, URLRouterfrom channels.auth import AuthMiddlewareStackimport chat.routingapplication = ProtocolTypeRouter({ 'websocket': AuthMiddlewareStack( URLRouter( chat.routing.websocket_urlpatterns ) ),})

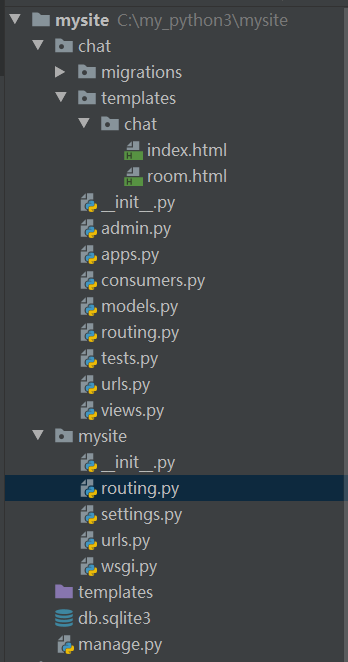

9.最終的文件關系如下圖
10.啟動服務

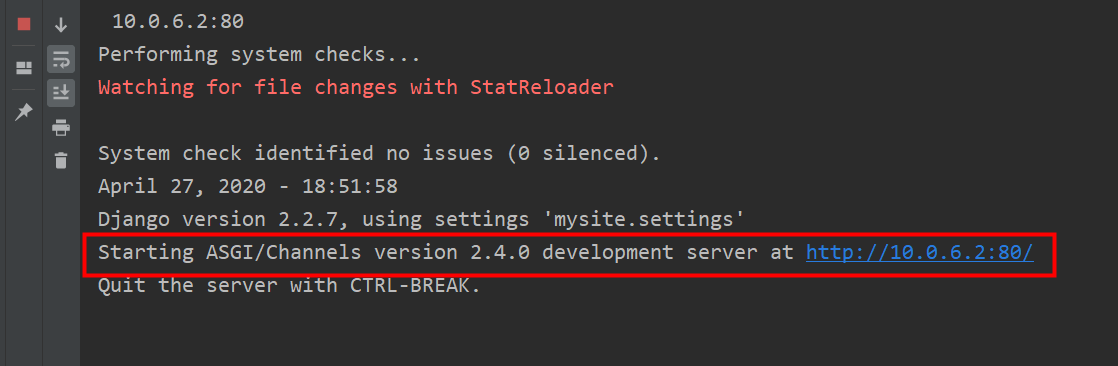

python3 manage.py runserver 10.0.6.2:80
注意看，這和django是不一樣的
還有另一種更穩健的啟動方式
和setting同級新增文件 asgi.py
import osimport djangofrom channels.routing import get_default_applicationos.environ.setdefault('DJANGO_SETTINGS_MODULE', 'mysite.settings')django.setup()application = get_default_application()
啟動方式為：

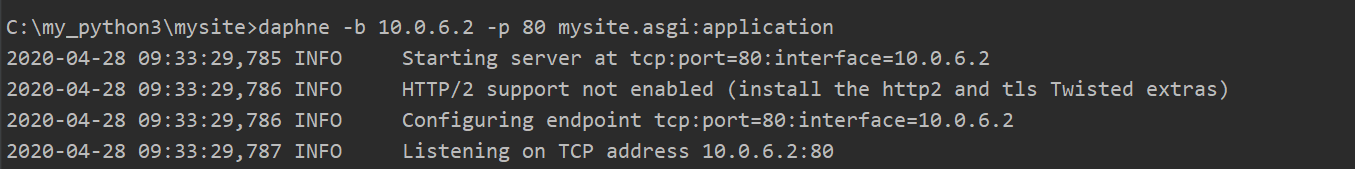

daphne -b 10.0.6.2 -p 80 mysite.asgi:application
daphne 在安裝channel時已經自動安裝好了
參考：
https://channels.readthedocs.io/en/latest/tutorial/index.html
https://blog.ernest.me/post/asgi-demonstration-realtime-blogging
到此這篇關于Django Channel實時推送與聊天的示例代碼的文章就介紹到這了,更多相關Django Channel實時推送與聊天內容請搜索好吧啦網以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持好吧啦網！
